– One or multiple XL tank(s) constructed on site
– Carried out efficiently with our proprietary coil building system (one tank at a time)
– When transport or installation on site is difficult or impossible
How does single tank on site work?
Transporting large tanks is often a challenge. Although many things are possible, transporting tanks by road or water is not always an (attractive) option. On some occasions, installation on a client’s premises is infeasible, such as when a tank needs to be hoisted into a plant building by crane, but there’s no access to allow it to happen. In cases like these, we can construct the tank on site. Our proprietary coil building system enables us to work efficiently on sites around the world – we produce the complete tank on site.
Production

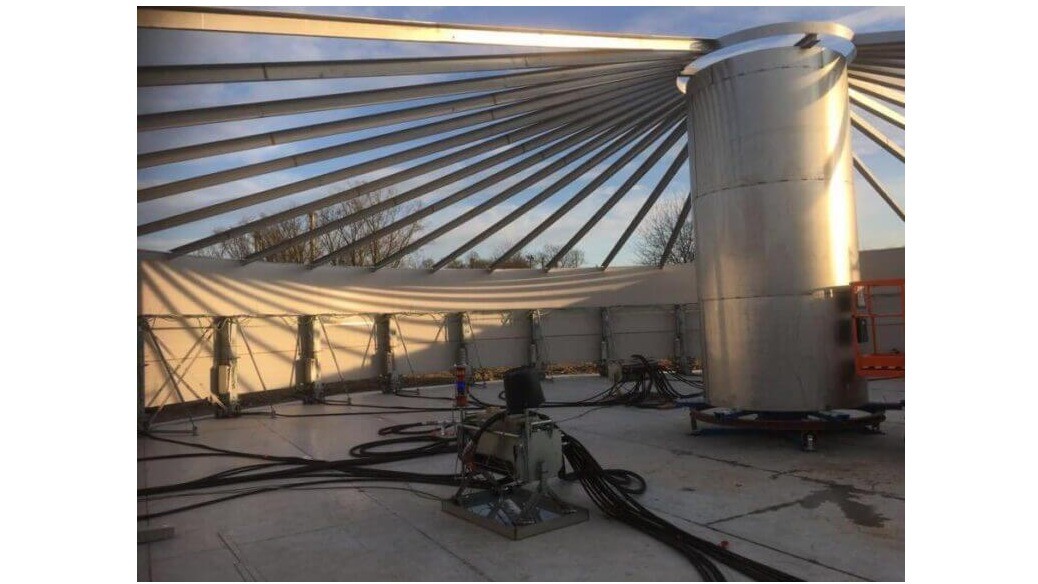

A number of containers of material and machinery are transported to the location, together with the team (which includes welders). Once at the location, we set up our proprietary coil building system on site as the basis for the tank construction. Our machinery unrolls a stainless steel sheet for one hull section, cuts it to size and then welds it automatically. Once the first layer of the tank is complete, computer-guided hydraulic lifts raise the hull section so that the next section can be inserted in the same way. The tank is constructed step by step from the bottom. All work is carried out efficiently and at workable height.
